Distance to Categories

The Distance to Categories application computes, for each location in an object, the nearest distance to each category defined in a categorical or boolean data property. This is useful for feature extraction in machine learning workflows, where proximity to geological units, lithological boundaries, or other spatial categories can serve as predictive variables.

For example, given a 2D Grid or Block Model with a lithology property, the application creates one distance property per rock type. Each cell stores how far it is from the nearest cell of that lithology, which can be used directly as a machine learning feature.

Interface

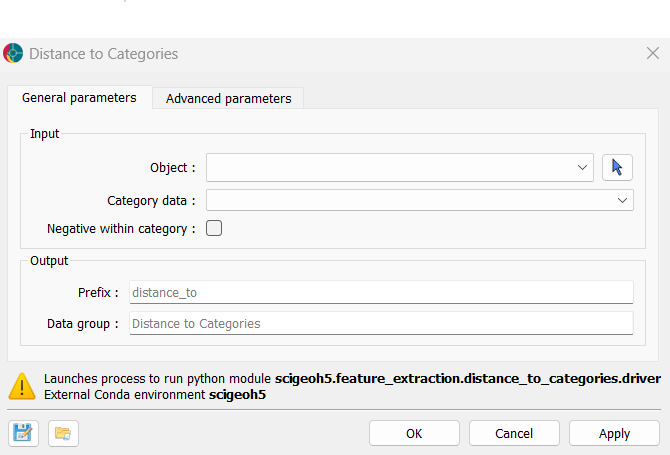

The parameters controlling the Distance to Categories application are shown in the figure below.

Input

• Object: The object for which distances to each category will be computed.

• Category data: The categorical (Referenced) or Boolean data defining the categories. One distance property is created per category. A category is skipped if all data locations belong to it (distance would be 0 everywhere) or if none do (no target points to measure distance from). Category 0 (representing UNKNOWN or FALSE) is always excluded from the output.

• Negative within category (default = False): If unchecked, all output values are non-negative. Cells belonging to the category have a distance of 0, and all other cells carry their distance to the nearest cell of that category. If checked, cells inside the category receive a negative value representing their distance to the nearest category boundary.

Output

• Prefix (default = ``distance_to``): Prefix for output distance properties. Each property is named [prefix]_[category name].

• Data group (default = ``Distance to Categories``): Name of the output property group containing all distance properties.

Algorithm

Two distance algorithms are used depending on the object type:

• Euclidean Distance Transform (EDT): Used for regular grids — uniform 2D Grid objects and Block Model objects with uniform cell sizes in all three directions. This method directly operates on the shaped grid data, making it efficient for large regular meshes.

• KDTree: Used for all other object types (Points, Curve, Surface, Octree Grid, Draped Model). A spatial tree is built from the coordinates of the target category, and the nearest-neighbour distance is queried for all other locations.

Note

The EDT method requires uniform cell sizes in all dimensions. If a Block Model has variable cell sizes, the KDTree method is used instead.

Results

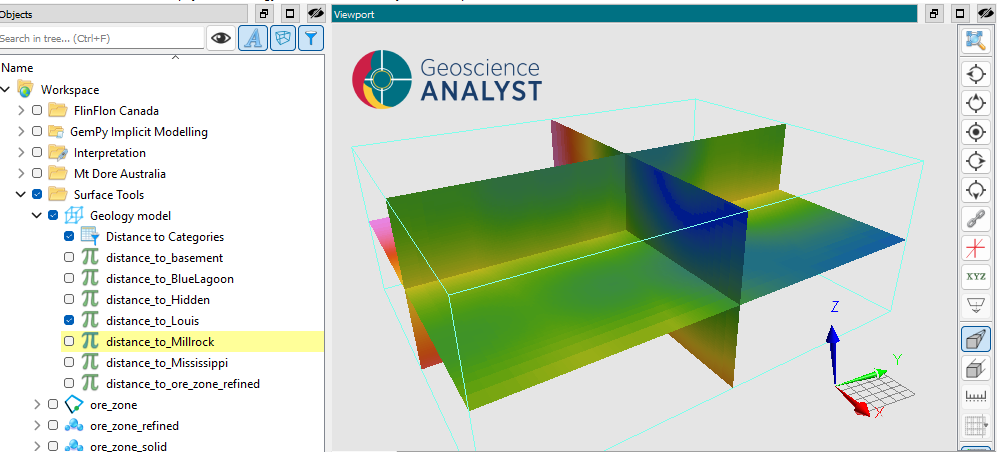

The application creates a new property group on the input object. Each property in the group contains the distance values for one category, named [prefix]_[category name], as illustrated in the figure below.

Tutorial

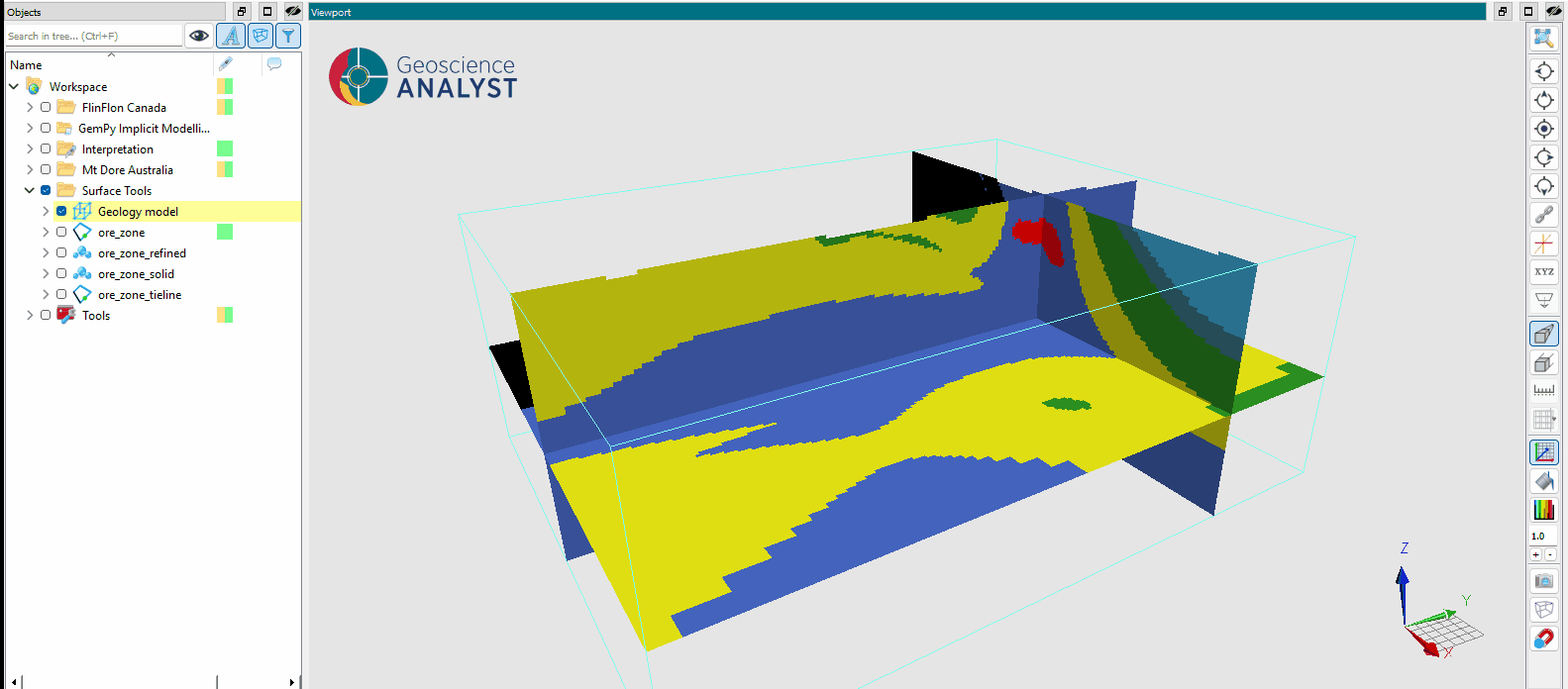

The following animated image presents a tutorial on how to use the Distance to Categories application.

• Open the application.

• Select the object containing the data.

• Select the categorical or boolean data property.

• (optional) Enable Negative within category to obtain signed distances.

• Define the output prefix and group name.

• Run the application.

• Inspect the computed distance properties.
